Key Highlights
LIFTING CAPACITY
900 kg
ENGIN POWER
25 HP
STEERING
Mechanical Steering
CLUTCH
Single Friction Plate
DRIVE TYPE
2WD
ENGIN RPM
1900 RPM
WEIGHT
NA

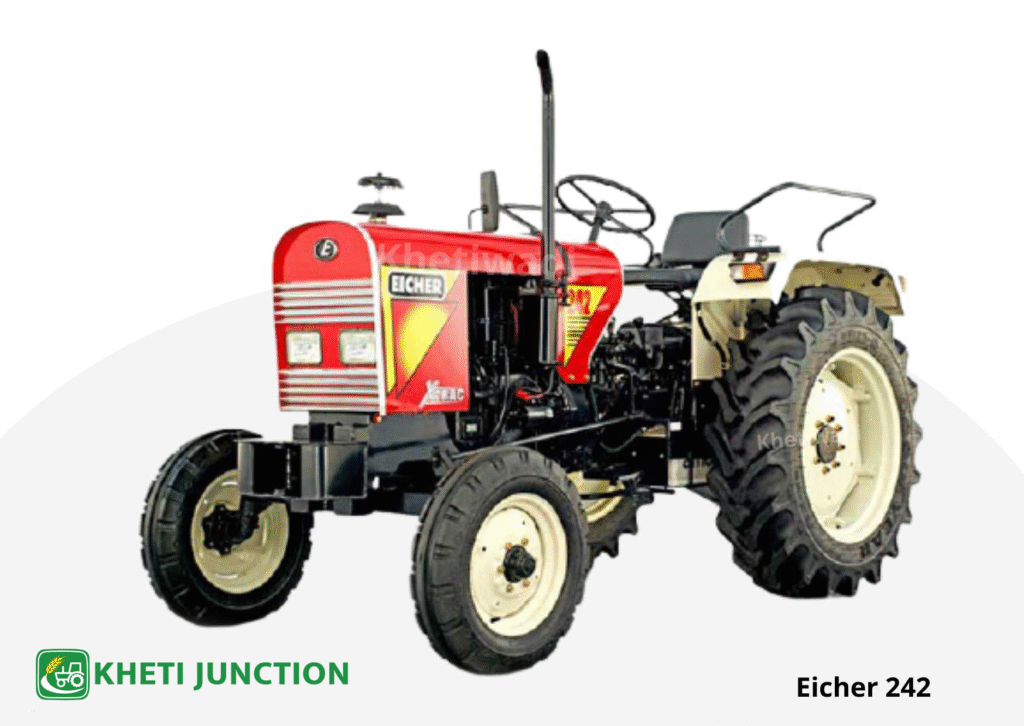

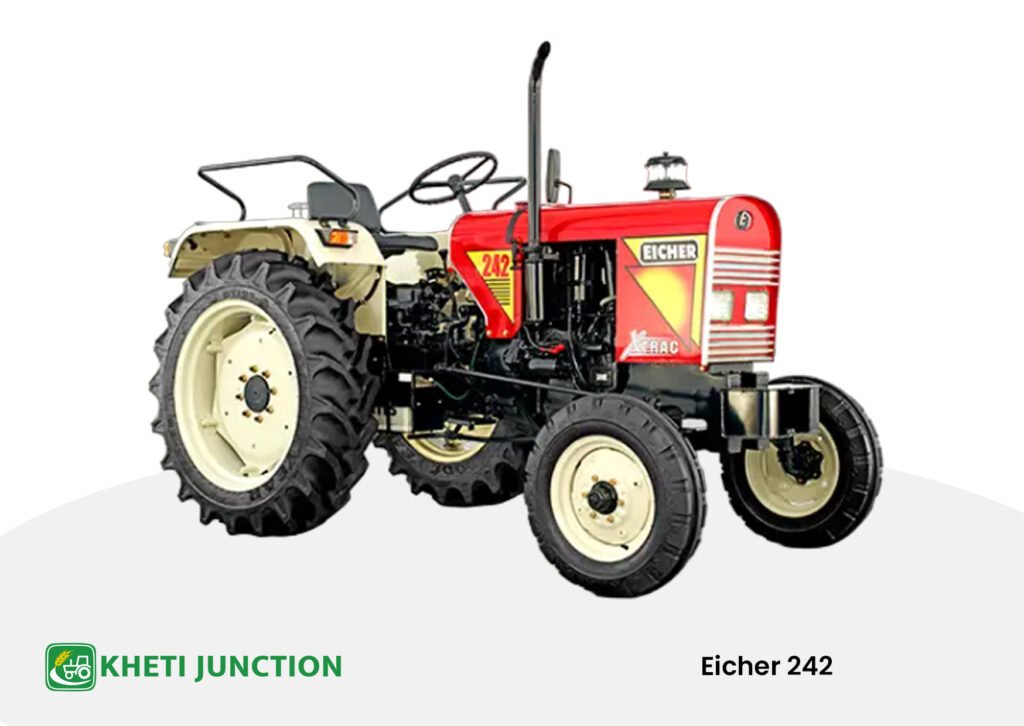

Eicher 242 Specifications
ENGINE
| Horsepower (HP) | 25 HP |
|---|---|
| Engine Capacity in cc | 1557 cc |
| Engine RPM | 1900 RPM |
| Cylinder | 1 |
| Air Filter | 4 Stage filter |
| Cooling Type | Air Cooled |
TRANSMISSION
| Clutch | Single Friction Plate |
|---|---|
| Type of Transmission | Sliding Mesh |
| Forward Speed | 27.6 kmph |
| Reverse speed | NA |
| No of Forward Gears | 8 |
| No of Reverse Gears | 2 |
BRAKES
| Type of Brake | Dry / Oil Immersed |
|---|---|
| Turning radius with brake | NA |
STEERING
| Type of Steering | Mechanical Steering |
|---|---|
| Steering Adjustment | NO |
PTO Power
| Type of PTO | 6 Spline |
|---|---|
| PTO RPM | 1000 |
| PTO POWER in HP | 21 HP |
FUEL TANK
| FUEL TANK Capacity(Liters) | 35 liters |
|---|
DIMENSION AND WEIGHT
| Weight | NA |
|---|---|
| Wheelbase | NA |
| Overall Length | NA |
HYDRAULICS
| Lifting capacity | 900 kg |
|---|
TYRE SIZE
| Front Tyres | 6 X 16 |
|---|---|
| Rear Tyress | 12.4 X 28 |
Drive Type
| Drive type | 2WD |
|---|
WARRANTY
| Warranty | 2000 Hours / 2 year |
|---|
