Key Highlights
LIFTING CAPACITY
2200 kg
ENGIN POWER
57 HP
STEERING
Mechanical / Power Steering
CLUTCH
Duty diaphragm type
DRIVE TYPE
2WD / 4WD
ENGIN RPM
2100 RPM
WEIGHT
NA

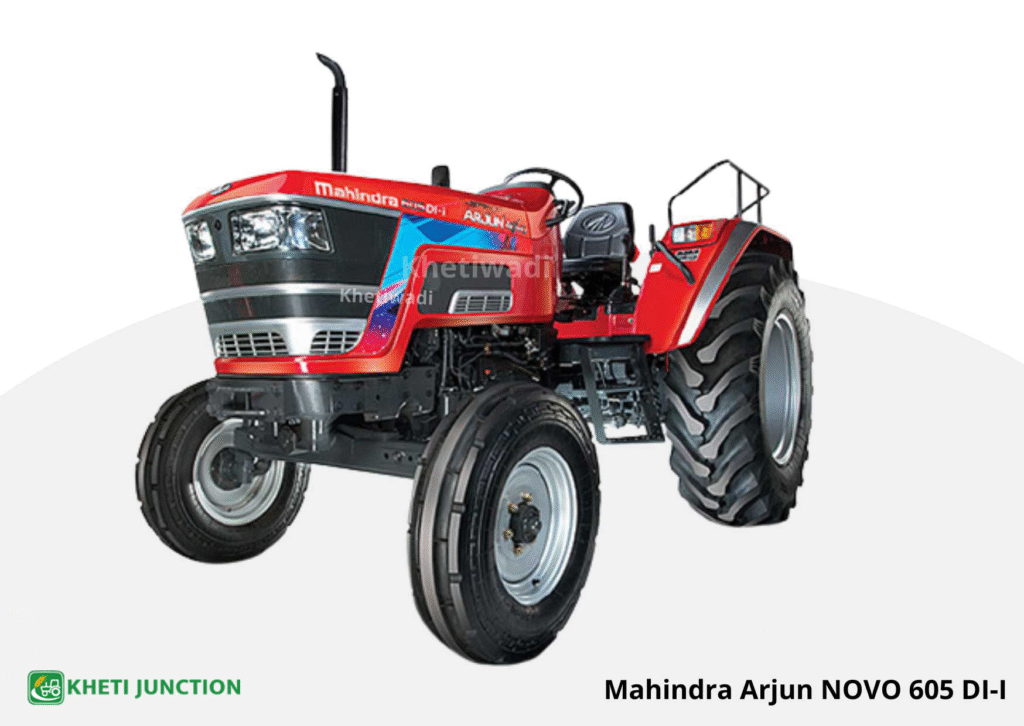

Mahindra Arjun NOVO 605 DI-I Specifications
ENGINE
| Horsepower (HP) | 57 HP |
|---|---|
| Engine Capacity in cc | 3531 cc |
| Engine RPM | 2100 RPM |
| Cylinder | 4 |
| Air Filter | Dry type with clog indicator |
| Cooling Type | Forced circulation of coolant |
TRANSMISSION
| Clutch | Duty diaphragm type |
|---|---|
| Type of Transmission | Synchromesh |
| Forward Speed | 1.69 – 33.23 kmph |
| Reverse speed | 3.18 – 17.72 kmph |
| No of Forward Gears | 15 |
| No of Reverse Gears | 3 |
BRAKES
| Type of Brake | Mechanical, Oil Immersed |
|---|---|
| Turning radius with brake | NA |
STEERING
| Type of Steering | Mechanical / Power Steering |
|---|---|
| Steering Adjustment | NO |
PTO Power
| Type of PTO | 6 Spline |
|---|---|
| PTO RPM | 540, 540E, Reverse |
| PTO POWER in HP | 50 HP |
FUEL TANK
| FUEL TANK Capacity(Liters) | 66 liters |
|---|
DIMENSION AND WEIGHT
| Weight | NA |
|---|---|
| Wheelbase | 2145 mm |
| Overall Length | 3660 mm |
HYDRAULICS
| Lifting capacity | 2200 kg |
|---|
TYRE SIZE
| Front Tyres | 7.5 X 16 |
|---|---|
| Rear Tyress | 16.9 X 28 |
Drive Type
| Drive type | 2WD / 4WD |
|---|
WARRANTY
| Warranty | 2000 Hours / 2 year |
|---|
